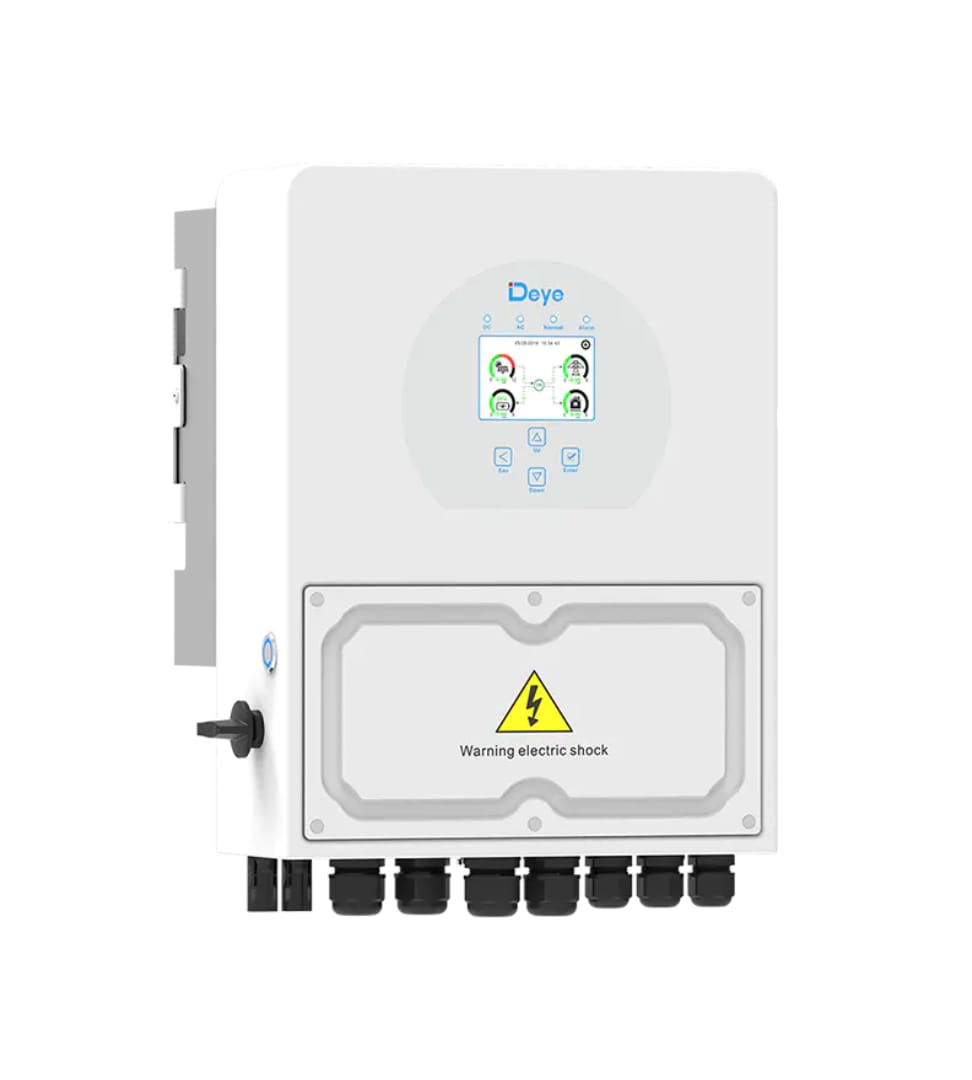

Deye SUN-5K-SG04LP1-EU – 5kW 1-Phase Hybrid Inverter
Deye SUN-5K-SG04LP1-EU 5kW hybrid inverter with 97.6% efficiency, IP65 protection, smart monitoring, 140A current, and fast 4ms grid-off transfer.
Description
Deye SUN-5K-SG04LP1-EU – Smart, Reliable, and High-Efficiency Hybrid Inverter
The Deye SUN-5K-SG04LP1-EU is a powerful 5kW single-phase hybrid inverter designed to deliver advanced energy management for both residential and small commercial applications. Combining intelligent control, superior safety, and high conversion efficiency, this inverter redefines how solar energy is stored and utilized.
Smart Hybrid Technology
This hybrid inverter supports both DC and AC coupling, allowing seamless integration with existing solar systems or new installations. It can store energy directly from solar panels or even a diesel generator, ensuring continuous power availability in all conditions.
Powerful and Efficient
With a maximum DC input power of 6500W and MPPT efficiency of 99.9%, the Deye SUN-5K-SG04LP1-EU extracts the most energy from your solar panels. It supports a max. charging/discharging current of 140A and up to 16 units in parallel, offering scalable performance for large energy demands.
Advanced Safety and Control
Equipped with a 24V/48V low-voltage battery system, this inverter ensures enhanced electrical safety. The integrated smart monitoring platform enables remote shutdown, parameter adjustments, and firmware updates — simplifying operations and maintenance.
Fast Transfer and Smart Load Management
The 4ms fast transfer time between grid and off-grid modes ensures seamless power continuity, allowing even traditional fixed-frequency air conditioners to operate without interruption. Its smart load and peak shaving features maximize self-consumption and grid efficiency.
Rugged and Reliable Design
Featuring an IP65-rated enclosure, the SUN-5K-SG04LP1-EU is built for durability and outdoor installation. Its colorful touch LCD display provides clear system status and real-time performance data.
High Efficiency and Long-Term Reliability
With a maximum efficiency of 97.6% and a Euro efficiency of 96.5%, this inverter ensures top-tier energy conversion. It operates efficiently even under extreme temperatures from -40°C to 60°C and includes comprehensive protections against overvoltage, overcurrent, reverse polarity, and short circuits.
Certified and Proven Performance
Complying with international standards such as IEC 62109-1/2, CEI 0-21, VDE-AR-N 4105, and G99, this inverter offers peace of mind and compatibility with global energy systems.
Focused Keyword: Deye SUN-5K-SG04LP1-EU
Power your future with Deye SUN-5K-SG04LP1-EU — the hybrid inverter designed for intelligent, safe, and sustainable energy management.
Check our products page
Additional information
| Model | SUN-5K-SG04LP1-EU |
|---|---|
| Type | Hybrid Inverter |
| Phase | 1-Phase |
| Nominal Power | 5kW |
| Max. AC Output Power | 5.5kW |
| Battery Type | Lead-acid / Lithium-ion |
| Battery Voltage Range | 40–60V |
| Max. Charging/Discharging Current | 120A |
| Max. DC Input Power | 6500W |
| PV Input Voltage Range | 125V–500V |
| MPPT Range | 150–425V |
| No. of MPPT Trackers | 2 |
| PV Input Current | 13+13A |
| Max. PV ISC | 17+17A |
| Efficiency | Max 97.6%, Euro 96.5%, MPPT 99.9% |
| Operating Temperature | -40°C to 60°C |
| Protection Degree | IP65 |
| Transfer Time | 4ms |
| Cooling | Natural cooling |
| Noise Level | <30 dB |
| Communication | RS485, CAN |
| Parallel Units | Up to 16 |
| Display | Colorful touch LCD |
| Dimensions (W × H × D) | 330 × 433 × 238 mm |
| Weight | 15.1 kg |
| Warranty | 5 years |
| Certifications | CEI 0-21, VDE-AR-N 4105, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, IEC/EN 62109-1/2 |
