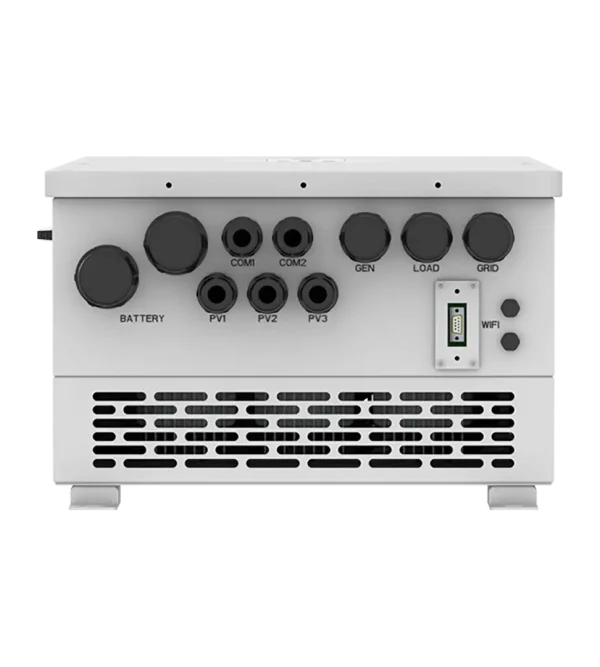

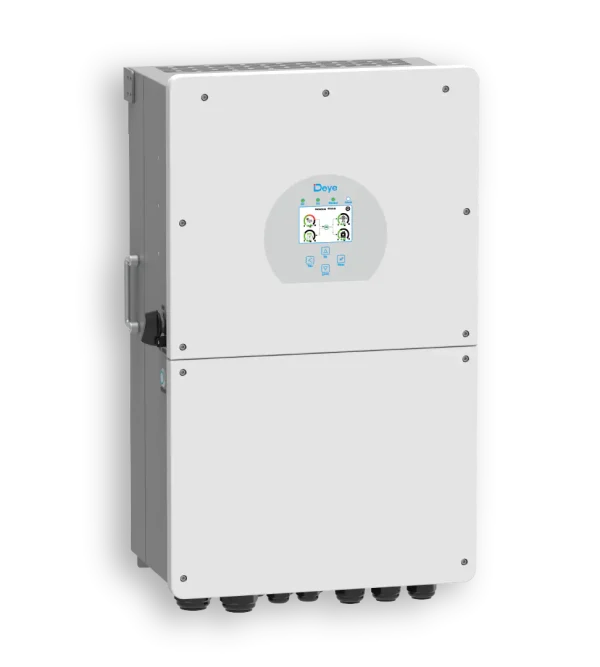

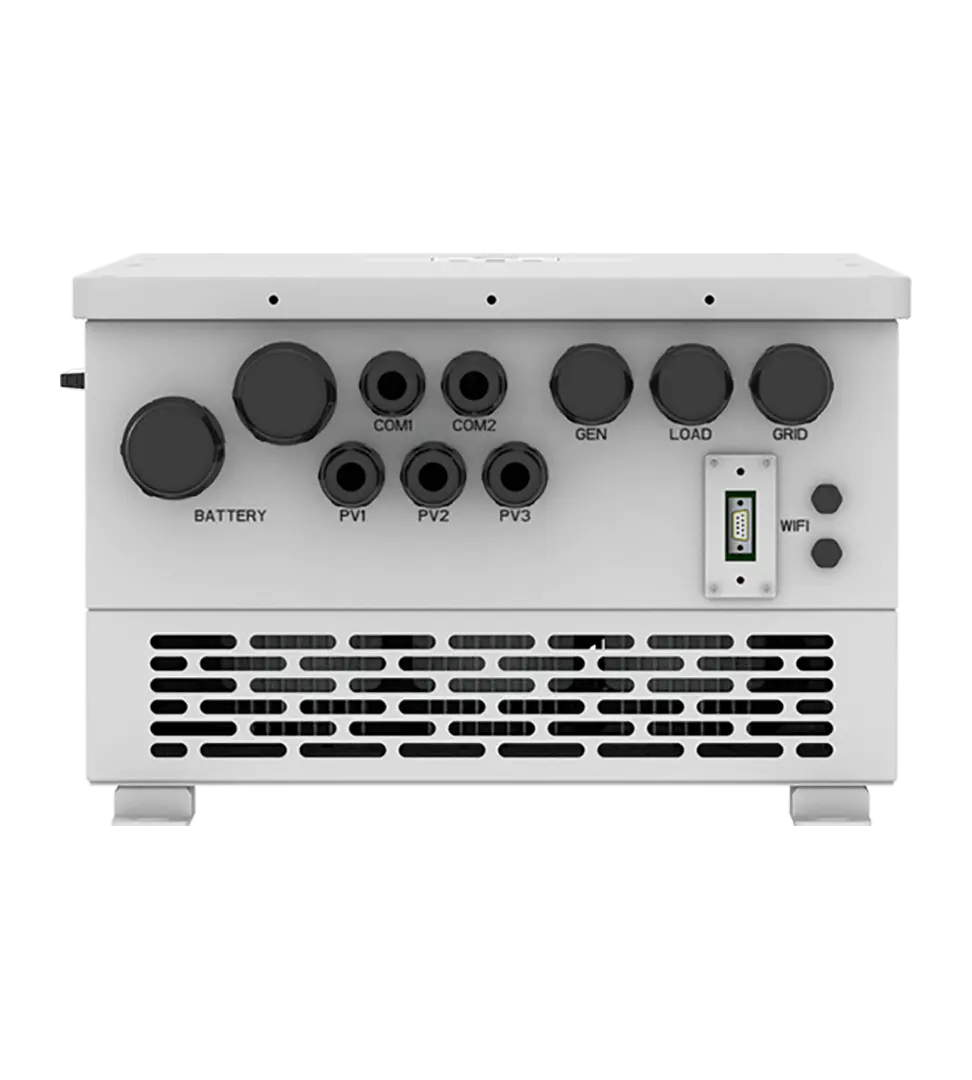

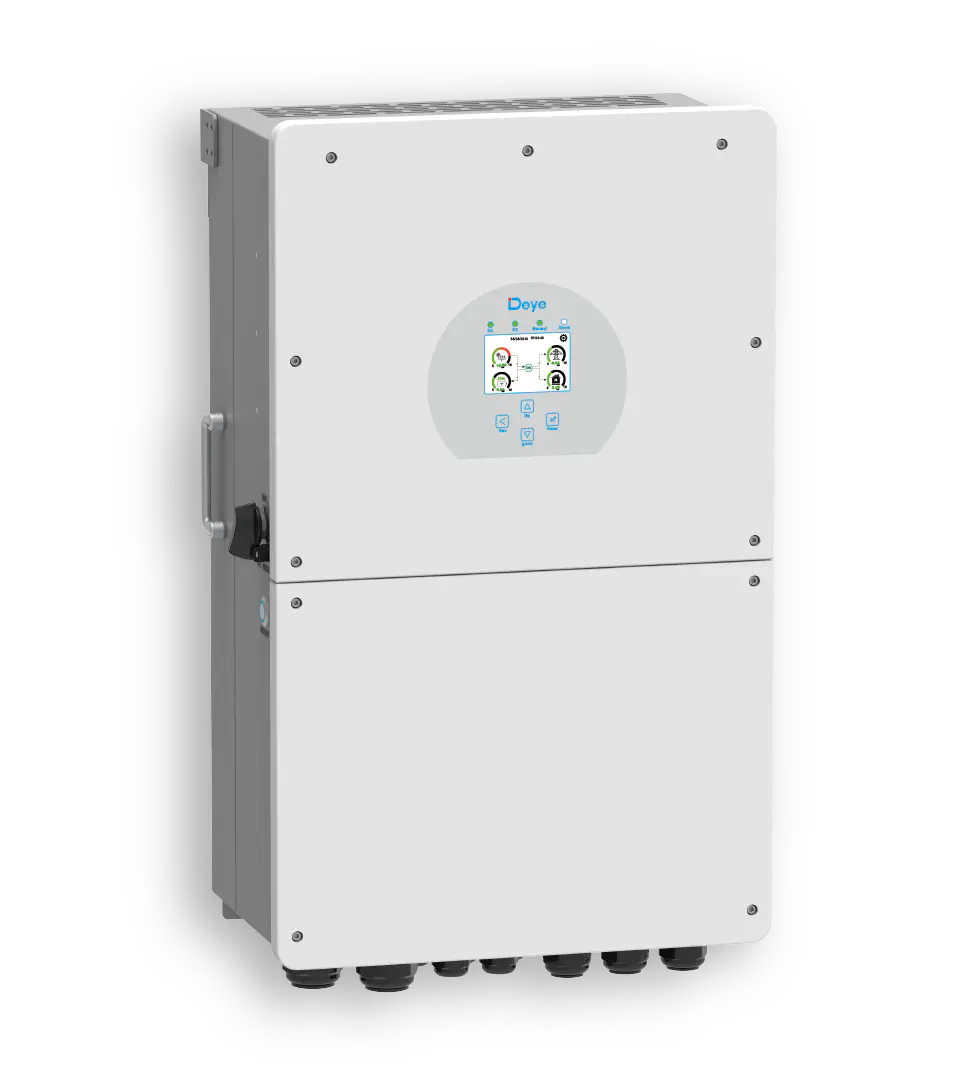

Deye SUN-16K-SG01LP1-EU – 16kW Hybrid Solar Inverter
Deye SUN-16K-SG01LP1-EU 16kW hybrid inverter with 97.6% efficiency, IP65 protection, 290A charge/discharge current, and smart cooling system.
Description
Deye SUN-16K-SG01LP1-EU – High-Capacity 16kW Hybrid Inverter for Industrial and Residential Solar Systems
The Deye SUN-16K-SG01LP1-EU is a top-tier hybrid inverter designed to deliver exceptional performance for high-capacity solar energy systems. Built for both residential and commercial applications, it provides seamless energy management, outstanding conversion efficiency, and robust safety features to maximize energy independence.
Powerful and Scalable Energy Control
With an impressive 16kW rated power output and 17.6kVA maximum apparent power, the SUN-16K-SG01LP1-EU is engineered to handle large-scale installations. It supports a maximum DC input power of 25.6kW and PV access power up to 32kW, ensuring optimal utilization of your solar panels.
Advanced Multi-MPPT Design
Featuring three independent MPPT trackers (2+2+2 configuration), this inverter guarantees maximum energy yield even under variable sunlight conditions. Each tracker handles up to 26A of PV current, providing precise control over solar input and efficient energy distribution.
High-Performance Battery Integration
The Deye SUN-16K-SG01LP1-EU supports both lead-acid and lithium-ion batteries with full BMS communication and two independent battery inputs. It offers 290A max charging and discharging current, ensuring rapid and efficient battery cycling while maintaining system safety.
Outstanding Efficiency and Energy Conversion
Achieving 97.6% maximum efficiency and 96.5% Euro efficiency, along with a 99% MPPT efficiency, the inverter ensures minimal power loss and maximum return on your solar investment. Whether on-grid or off-grid, it delivers consistent power for your home, business, or industrial facility.
Comprehensive Safety and Protection
The inverter integrates multiple protection systems, including anti-islanding, reverse polarity, short circuit, thermal, overcurrent, and overvoltage protections. It also features arc fault circuit interrupter (AFCI) and residual current detection for maximum operational safety.
Smart Connectivity and Monitoring
Equipped with RS485, RS232, and CAN interfaces, and supporting GPRS, Wi-Fi, Bluetooth, 4G, and LAN (optional), the SUN-16K-SG01LP1-EU enables real-time monitoring and system updates. Its advanced control system allows easy parameter configuration and remote diagnostics.
Rugged Design for Harsh Environments
Engineered with an IP65 protection rating and intelligent air-cooling system, this inverter operates efficiently in extreme temperatures ranging from -40°C to +60°C. It can withstand humidity up to 100% and altitudes up to 2000 meters, making it suitable for diverse climates and industrial conditions.
Certified Quality and Long-Term Reliability
The Deye SUN-16K-SG01LP1-EU meets international certifications including IEC 62109-1/2, IEC 61727, and NRS 097. It comes with a 5-year warranty (extendable to 10 years), ensuring long-lasting performance and peace of mind.
Focused Keyword: Deye SUN-16K-SG01LP1-EU
Power up your energy future with the Deye SUN-16K-SG01LP1-EU — a 16kW hybrid inverter that combines power, precision, and smart technology for sustainable and reliable energy solutions.
Additional information
| Model | SUN-16K-SG01LP1-EU |
|---|---|
| Type | Hybrid Inverter |
| Nominal Power | 16kW |
| Max Apparent Power | 17.6kVA |
| Battery Type | Lead-acid / Lithium-ion |
| Battery Voltage Range | 40–60V |
| Max Charging Current | 290A |
| Max Discharging Current | 290A |
| Battery Inputs | 2 |
| PV Max Input Power | 25.6kW |
| PV Access Power | 32kW |
| PV Max Voltage | 500V |
| MPPT Range | 150–425V |
| No. of MPPT Trackers | 3 |
| Strings per MPPT | 2+2+2 |
| Max PV Input Current | 26+26+26A |
| Max PV Short Circuit Current | 44+44+44A |
| Rated AC Power | 16kW |
| Max AC Power | 17.6kW |
| Peak Power (off-grid) | 2× rated power (10s) |
| AC Output Voltage | 220/230V |
| Power Factor | 0.8 leading to 0.8 lagging |
| THD | <3% |
| Efficiency | Max 97.6%, Euro 96.5%, MPPT >99% |
| Cooling | Intelligent Air Cooling |
| Noise | <50 dB(A) |
| Ingress Protection | IP65 |
| Operating Temperature | -40°C to +60°C (>45°C derating) |
| Humidity | 0–100% |
| Altitude | ≤2000m |
| Communication | RS485 / RS232 / CAN |
| Monitoring Options | GPRS, Wi-Fi, Bluetooth, 4G, LAN (optional) |
| Dimensions (W × H × D) | 464 × 763 × 282 mm |
| Weight | 52 kg |
| Warranty | 5 years (extendable to 10 years) |
| Certifications | IEC 62109-1/2, IEC 61727, IEC 62116, NRS 097, EN 61000-6-1/2/3/4 |
