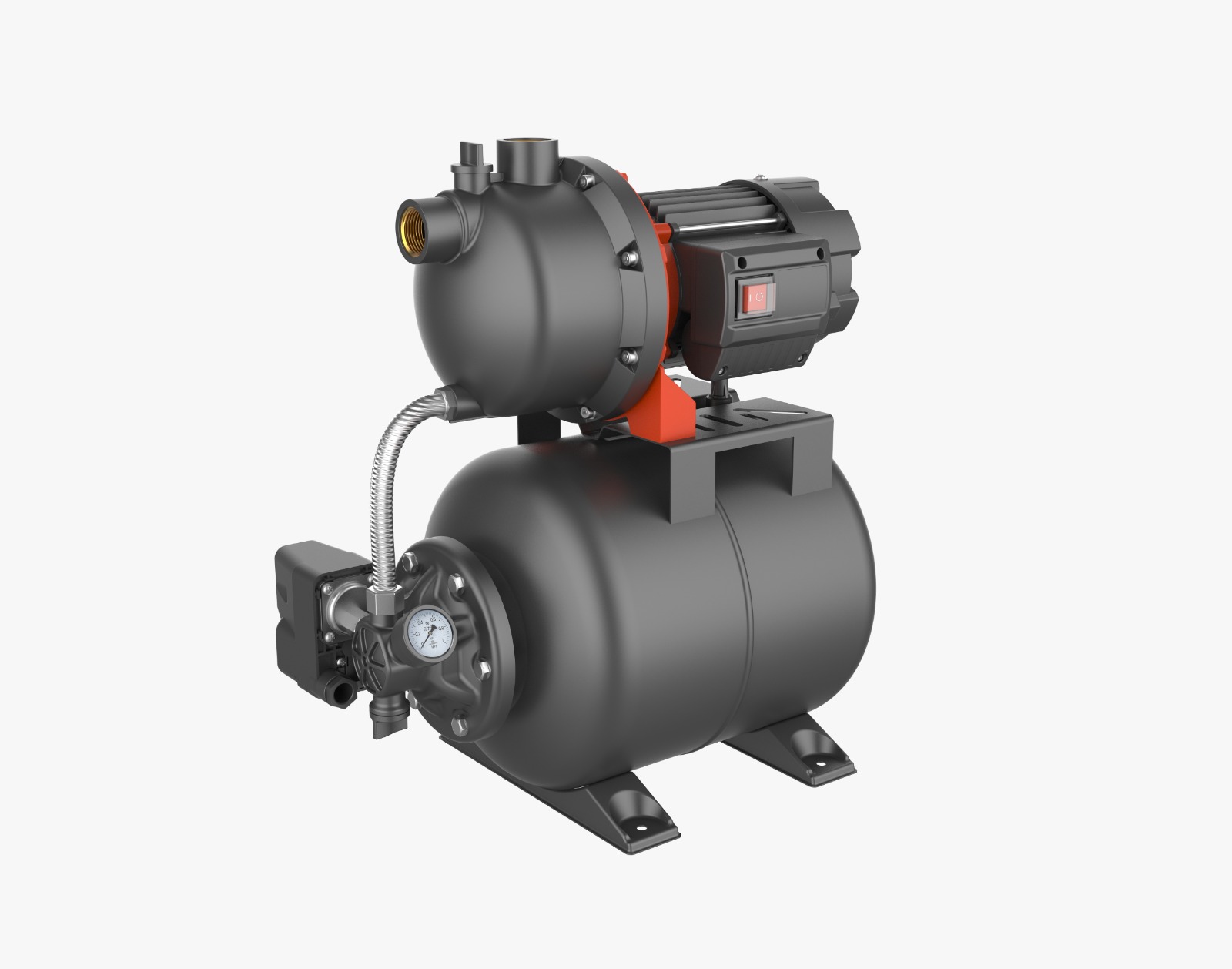

LEO EKJ-1002IA-24L 1.5HP Automatic Pressure Pump – 46m Head
LEO EKJ-1002IA-24L Automatic Pressure Pump features a 1.5HP motor with 46m maximum head and 24L pressure tank. Designed for domestic water supply, pressure boosting, and irrigation systems with automatic pressure control.
Description
LEO EKJ-1002IA-24L 1.5HP Automatic Pressure Pump – 46m Head
The LEO EKJ-1002IA-24L Automatic Pressure Pump is a self-priming jet pump unit designed for domestic water supply and pressure boosting applications. Equipped with a 1.5HP (1.1kW) motor and a 24-liter pressure tank, it ensures stable water pressure and automatic operation for residential and light irrigation systems.
Key Technical Specifications of LEO EKJ-1002IA-24L Automatic Pressure Pump
- Model: EKJ-1002IA-24L
- Power: 1.5HP (1.1kW)
- Voltage: 220–240V, 50Hz, Single Phase
- Max Head: 46m
- Max Flow: 3.6 m³/h
- Outlet Size: 1″ x 1″
- Construction: Cast iron pump body, steel pressure tank
- Controller: Mechanical pressure switch with pressure gauge
Performance Highlights
- Self-priming jet design for reliable suction from tanks or shallow wells
- Durable cast iron construction for extended operational life
- Automatic start/stop operation based on system pressure demand
- Integrated 24L tank reduces pump cycling and stabilizes pressure
Applications
- Residential water supply systems
- Pressure boosting for villas and low-rise buildings
- Garden irrigation and sprinkler systems
- Water transfer from tanks and cisterns
Why Choose LEO EKJ-1002IA-24L Automatic Pressure Pump?
This integrated pressure tank unit simplifies installation by combining the pump, tank, pressure switch, and gauge in a single assembly. The self-priming mechanism allows reliable water lifting without complex priming procedures.
With its 46m maximum head and consistent pressure regulation, this unit is suitable for domestic networks requiring steady flow and controlled operation. The built-in thermal protector enhances motor safety during extended use.
Installation & Requirements
- Requires 220–240V single-phase power supply
- Pre-set mechanical pressure switch included
- Professional installation is recommended to ensure correct suction piping and electrical protection
Warranty & Support
This product is supplied and supported by Al Falak Al Ahmar Equipment Trading L.L.C., providing technical guidance and after-sales assistance for installation and operation.
Additional information
| Power | 1.5HP (1.1kW) |
|---|---|
| Voltage | 220–240V, 50Hz, Single Phase |
| Max Flow | 3.6 m³/h |
| Max Head | 46m |
| Outlet Size | 1" x 1" |
| Pump Type | Self-Priming Jet Pump with Pressure Tank |
| Controller | Mechanical Pressure Switch |
| Application | Domestic water supply, pressure boosting, irrigation |
