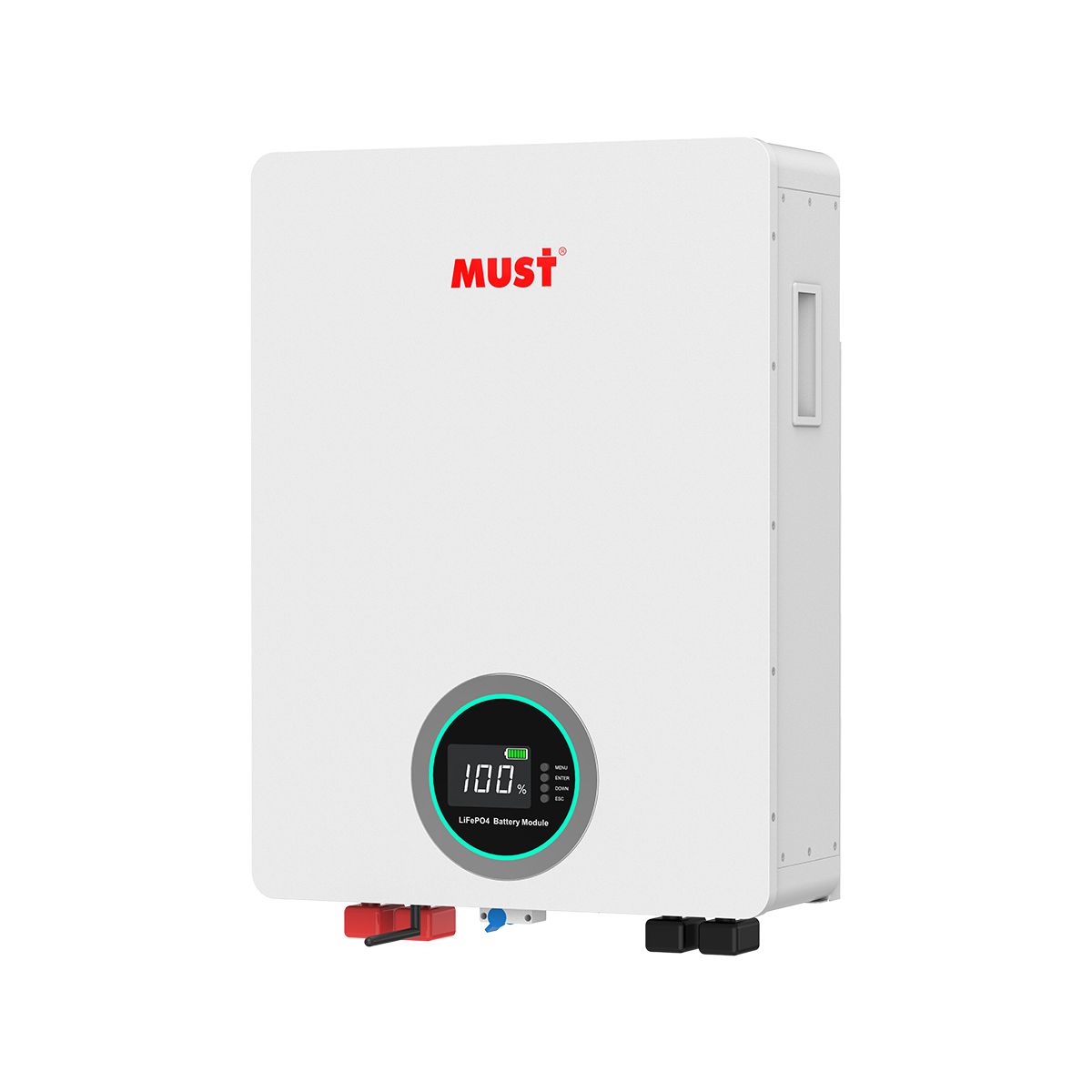

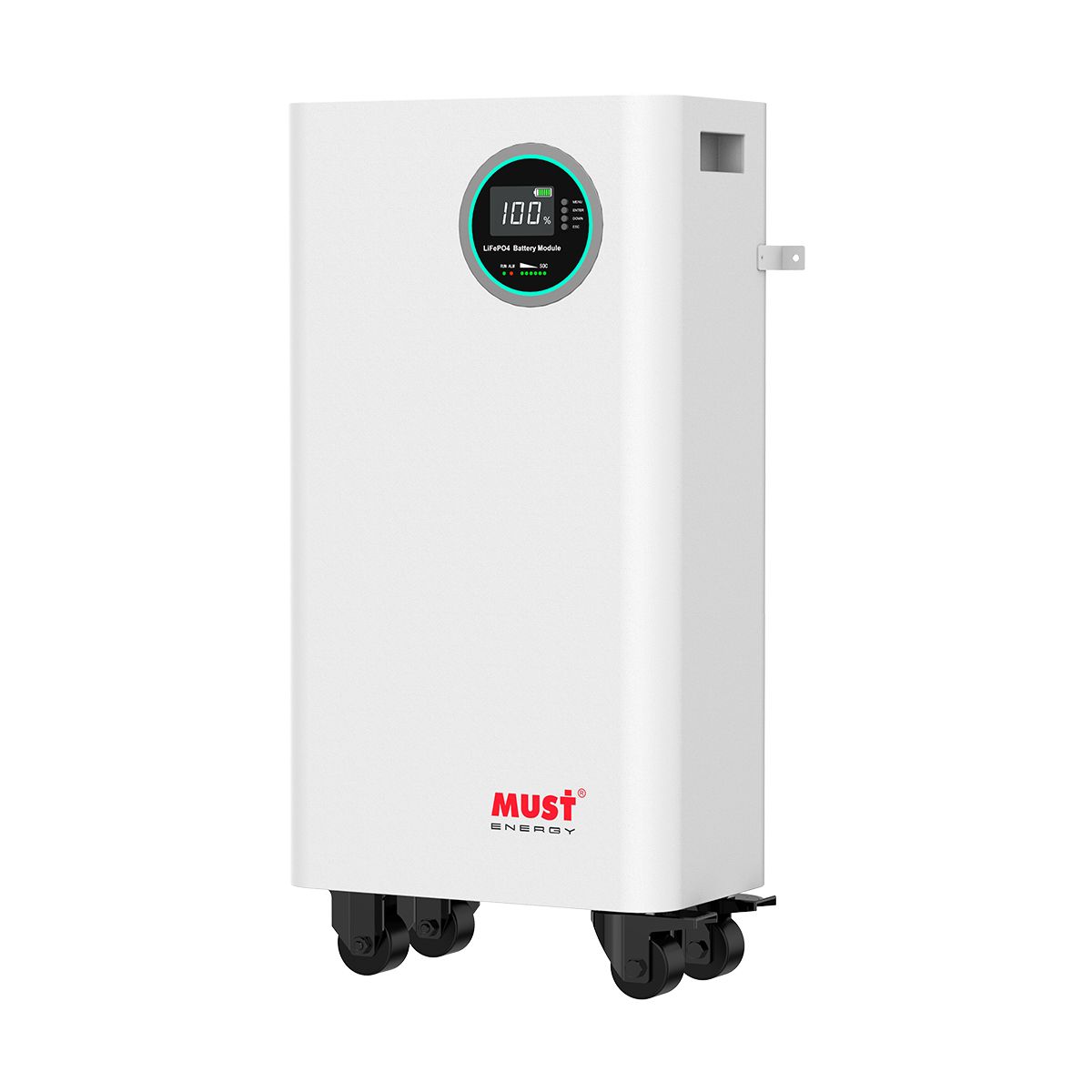

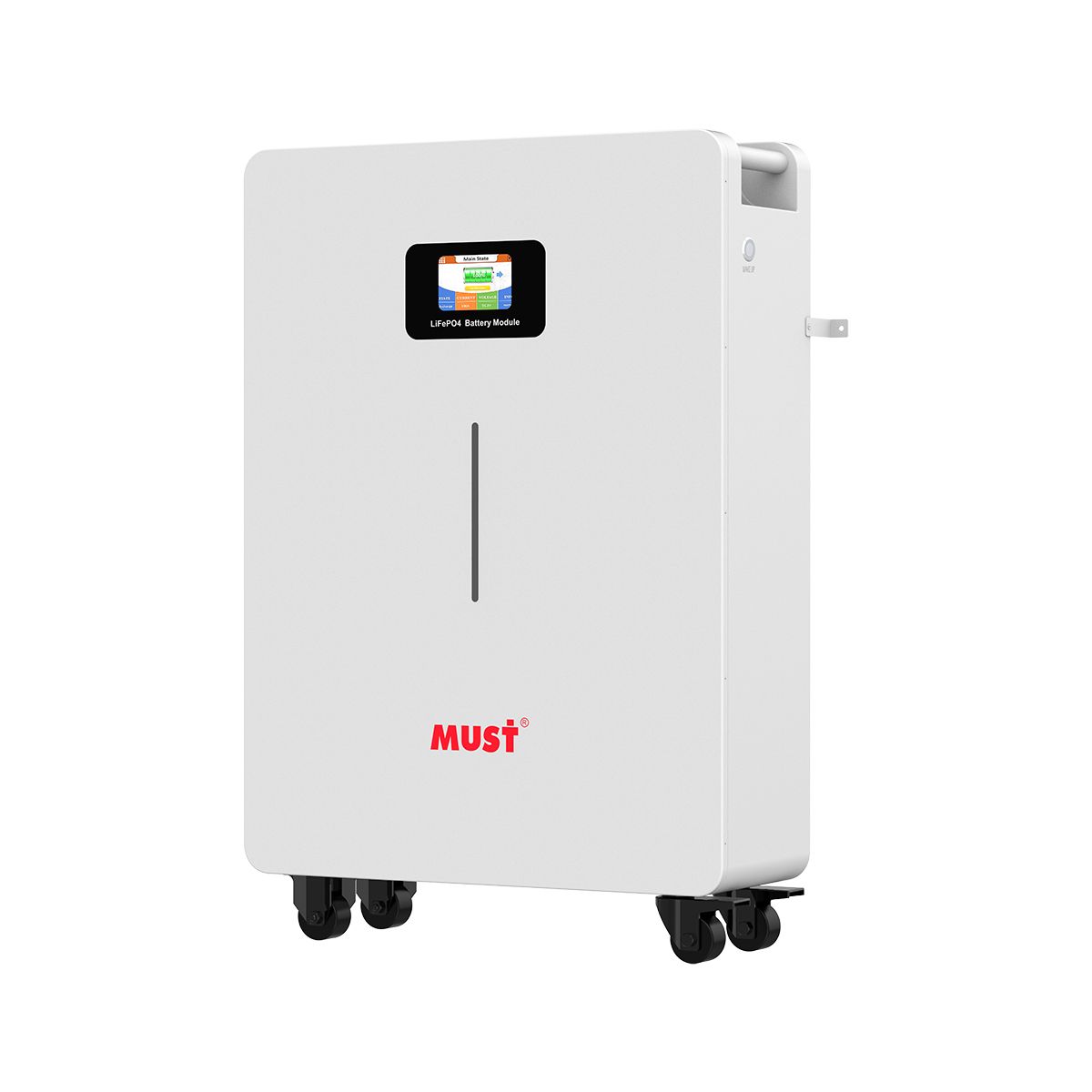

MUST LP16-48300 15.36kWh LiFePO4 Battery – 51.2V 300Ah

الوصف

LP16-48300 LiFePO4 Battery – MUST 15.36kWh 48V High-Capacity Storage

The LP16-48300 LiFePO4 Battery is a high-capacity lithium energy storage system designed for large-scale solar and backup power applications. With a nominal voltage of 51.2V and 300Ah capacity, it delivers 15.36kWh of energy and supports up to 10kW output, making it ideal for demanding residential, commercial, and industrial energy systems.

LP16-48300 LiFePO4 Battery – Key Technical Specifications

• Model: LP16-48300
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Voltage: 51.2V
• Capacity: 300Ah
• Energy: 15.36kWh
• Max Continuous Discharge: 200A
• Max Output Power: Up to 10 kW
• Cycle Life: ≥6000 cycles at 80% DOD
• Recommended Charge Voltage: 58.4V
• End of Discharge Voltage: 44V
• Communication: CAN / RS485 / RS232
• Installation: Vertical floor-standing configuration
• Protection Level: IP21
• Construction: SPCC steel housing

LP16-48300 LiFePO4 Battery – Performance Highlights

• Massive 15.36kWh capacity reduces need for multiple battery units
• Supports high-power inverter systems up to 10kW :contentReference[oaicite:0]{index=0}
• High discharge capability up to 200A for demanding loads :contentReference[oaicite:1]{index=1}
• Long service life exceeding 6000 cycles for daily operation :contentReference[oaicite:2]{index=2}
• Advanced BMS with full protection against electrical and thermal faults

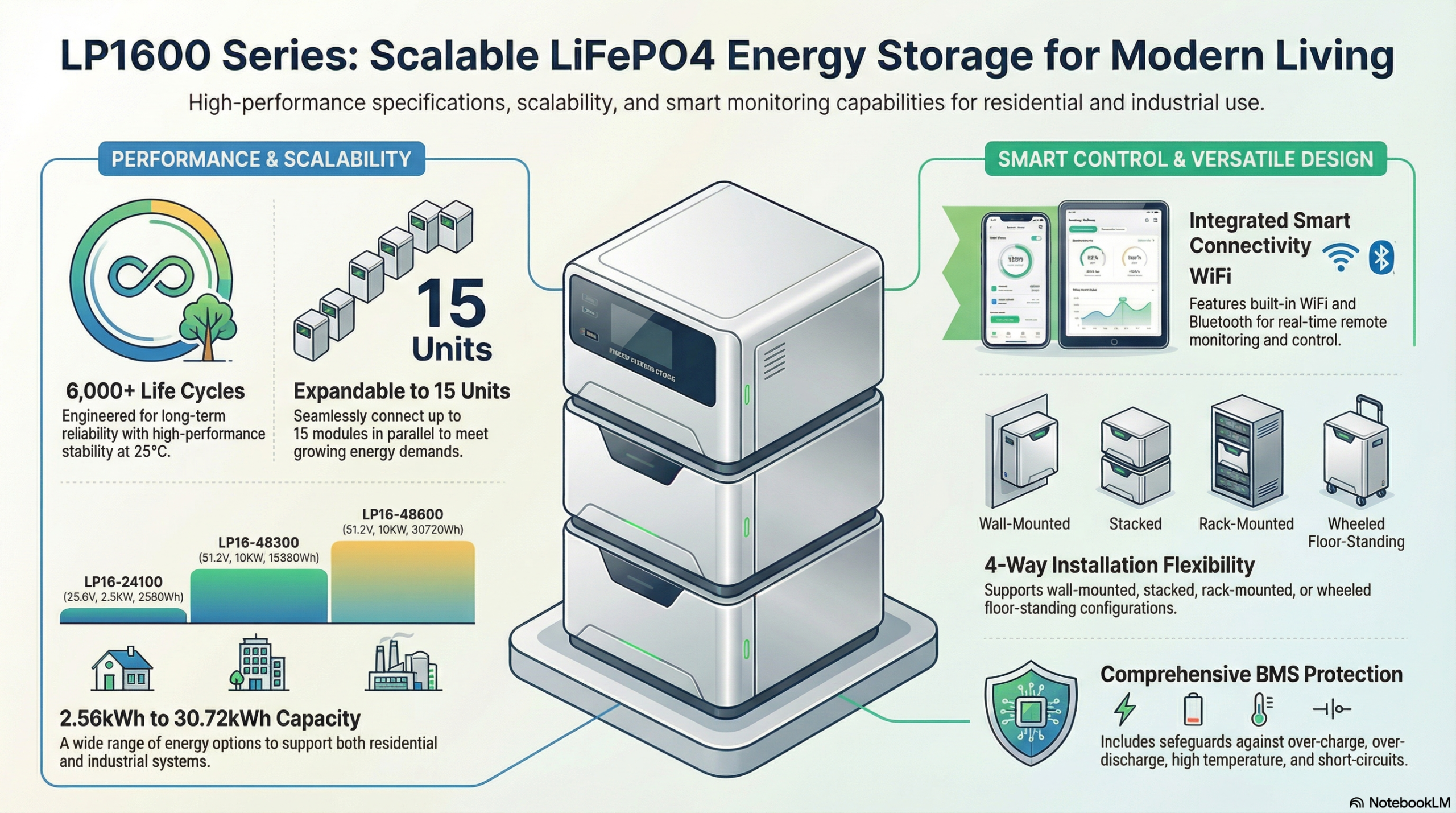

• Scalable system with parallel support for large energy storage installations

Applications

• Large residential solar energy storage systems
• Commercial and industrial backup power
• Off-grid solar installations
• Telecom, server rooms, and energy management systems

Why Choose This Product?

The LP16-48300 configuration is engineered for high-demand environments where large energy storage and high output power are essential. Its 15.36kWh capacity significantly reduces installation complexity by minimizing the number of required battery units.

Designed as a vertical floor-standing system, this battery is optimized for high-capacity installations with improved thermal management and structural stability. Combined with LiFePO4 chemistry and intelligent BMS, it delivers superior safety, long operational life, and consistent performance under continuous load.

Installation & Requirements

• Compatible with 48V (51.2V nominal) inverter systems
• Supports CAN and RS485 communication for inverter integration
• Vertical installation required due to large capacity design
• Professional installation recommended for system safety and optimization

Warranty & Support

This product is supplied by Al Falak Al Ahmar Equipment Trading L.L.C., providing technical consultation, system design assistance, and after-sales support across the UAE.
